ListView with Sqlite Data and ListItem Listener

ListView with Sqlite Data and ListItem Listener

Expected Output

In my example, You would need 2 layout

main.xml


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:orientation="vertical"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent">

 <ListView android:layout_width="fill_parent"
   android:layout_height="fill_parent"
   android:id="@+id/mainListView">
 </ListView>


         <TextView
            android:id="@+id/tvList"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:layout_marginTop="20dp"
     />

</LinearLayout>

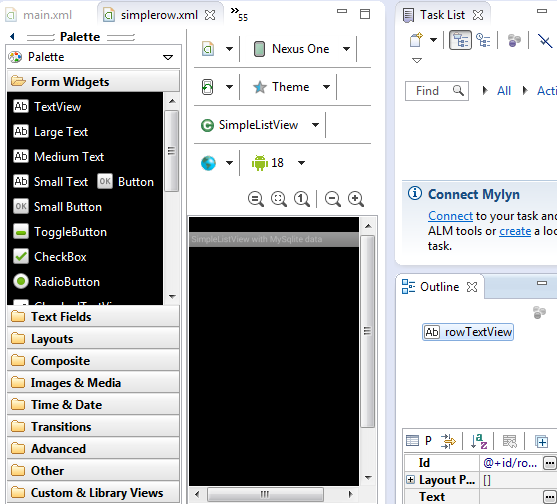

simplerow.xml

<TextView xmlns:android="http://schemas.android.com/apk/res/android"
 android:id="@+id/rowTextView"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:padding="10dp"
 android:textSize="16sp" >
</TextView>

strings.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="hello">SimpleListViewActivity!</string>
    <string name="app_name">SimpleListView with MySqlite data</string>
</resources>

SimpleListViewActivity.java


create a method call queryTable  returns an ArrayList

 ArrayList<String> queryTable(String sql)

package com.windrealm.android;

import java.util.ArrayList;
import java.util.Arrays;

import android.app.Activity;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.os.Bundle;
import android.text.Html;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;

public class SimpleListViewActivity extends Activity {

  private ListView mainListView ;
  private ArrayAdapter<String> listAdapter ;
  SQLiteDatabase db ;
  boolean noData= true;


  /** Called when the activity is first created. */
  @Override
  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);

 //Create Database and Table

 String sql="create table if not exists FavoritePlaces (recId integer PRIMARY KEY autoincrement, PlaceName text, latitude text, longitude text, mapURL text)";
 String result = createDatabase(sql,"FavPlaces.db");

    updateTable("delete from FavoritePlaces");

 //Check if there is existing data in the sqlite db

   checkData();
   if (noData)     //if there is no data then add
 {
 addData("TP");
 addData("Tampines");
 addData("Pasir Ris");
 addData("Pungol");
 addData("Seng Kang");
 addData("MDAD");
 addData("DMSD");
 addData("ASP");
 addData("WWW");
 addData("XXX");
 addData("YYY");
 addData("YY11YY");
 addData("YY22YY");
 addData("YY33YY");
 addData("YY44YY");
 addData("YY55YY");
 }

        // Find the ListView resource.
    mainListView = (ListView) findViewById( R.id.mainListView );

    ArrayList<String> placeList = new ArrayList<String>();

    placeList = queryTable("select placeName from FavoritePlaces " );
    // Create ArrayAdapter using the placeList.
    listAdapter = new ArrayAdapter<String>(this, R.layout.simplerow, placeList);

    // Set the ArrayAdapter as the ListView's adapter.
    mainListView.setAdapter( listAdapter );

    // Set an item click listener for ListView
    mainListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {


  @Override
  public void onItemClick(AdapterView<?> parent, View view, int position,
    long id) {
   // TODO Auto-generated method stub
            // Get the selected item text from ListView
    String selectedItem = (String) parent.getItemAtPosition(position);

            // Display the selected item text on Toast


    Toast.makeText(getApplicationContext(), "Your favorite : " + selectedItem,Toast.LENGTH_LONG).show();
  }
    });


  }

  void checkData()
  {
   queryTable("select placeName from FavoritePlaces " );

  }


  void addData(String pName)
  {

   String sql = "insert into FavoritePlaces (PlaceName,latitude,longitude,mapURL) values('"+pName+"','"+123+"','"+456+"','"+"www.tp.edu.sg"+"')";

    updateTable(sql);


  }



  String createDatabase(String sql,String dbName)
 {
   //Create SQLite database below
  try{

   System.out.println(sql); //Print to console for debugging

   db = SQLiteDatabase.openOrCreateDatabase("sdcard/"+dbName,null);
   db.beginTransaction();
   db.execSQL(sql);
   db.setTransactionSuccessful();
   db.endTransaction();
  }
  catch (Exception e) {
   Toast.makeText(this,e.getMessage(),Toast.LENGTH_LONG).show();

   System.out.println(e.toString());
   return ("error open DB");
  }

  return "DB"+dbName+" Created...";


 } //end of createDatabase method


  //SQL statements for Insert, Delete , Update
 String updateTable(String sql)
 {
  try{

   System.out.println(sql);
   db.beginTransaction();
   db.execSQL(sql);
   db.setTransactionSuccessful();
   db.endTransaction();

  }catch (Exception e) { System.out.println(e.toString());
   return ("Error updating DB");
  }
  return ("DB updated");
 }


 ArrayList<String> queryTable(String sql)

{

  //queryTable("Select placeName from FavoritePlaces order by recId desc");

   ArrayList<String> placeNameList = new ArrayList<String>();

  try{
   System.out.println(sql);

     Cursor cursor = db.rawQuery(sql,null);
   while (cursor.moveToNext()) {

    noData =false;  //there is data found

    String placeName = cursor.getString(cursor.getColumnIndex("PlaceName"));

    placeNameList.add(placeName);  //Add to ArrayList

   }



  }
  catch (Exception e) {
   System.out.println(e.toString());
   return  placeNameList;
  }

  if (noData)
  {

   return null;
  }
  else
  return placeNameList ;


 }







// SQL query statement or Select statement
 String queryTable(String sql, TextView displayResults)
 {
  boolean noData= true;


  String htmlText ="<b><pre>Name  Latitude  Longitude  map Link </pre></b><br>";

  try{
   System.out.println(sql);
   displayResults.setText("");  //clear text from display

   Cursor cursor = db.rawQuery(sql,null);
   while (cursor.moveToNext()) {


    noData =false;  //there is data found

    String placeName = cursor.getString(cursor.getColumnIndex("PlaceName"));
    String latitude = cursor.getString(cursor.getColumnIndex("latitude"));
    String longitude = cursor.getString(cursor.getColumnIndex("longitude"));

    String mapUrl = "    <a href='http://maps.google.com/maps?q="+latitude+","+longitude+"'> Maps </a>    ";
    htmlText +=placeName+" "+latitude+" "+longitude +" "+mapUrl+"<br>";


   }


   System.out.println(htmlText);
   displayResults.append(Html.fromHtml( htmlText));
  }
  catch (Exception e) {
   System.out.println(e.toString());
   return ("Error Retrieving DB");
  }

  if (noData)
  {

   return("Not found");
  }
  else
  return ("Search Results");


 }
}
